DEFORMABLE MIRRORS
WAVEFRONT CONTROL FOR ANY TYPE OF LASER
Perfect wavefront control for any optical system
High power lasers, microscopy, medical instruments and telescopes
can improve their performances by the integration of deformable mirrors for the wavefront control.

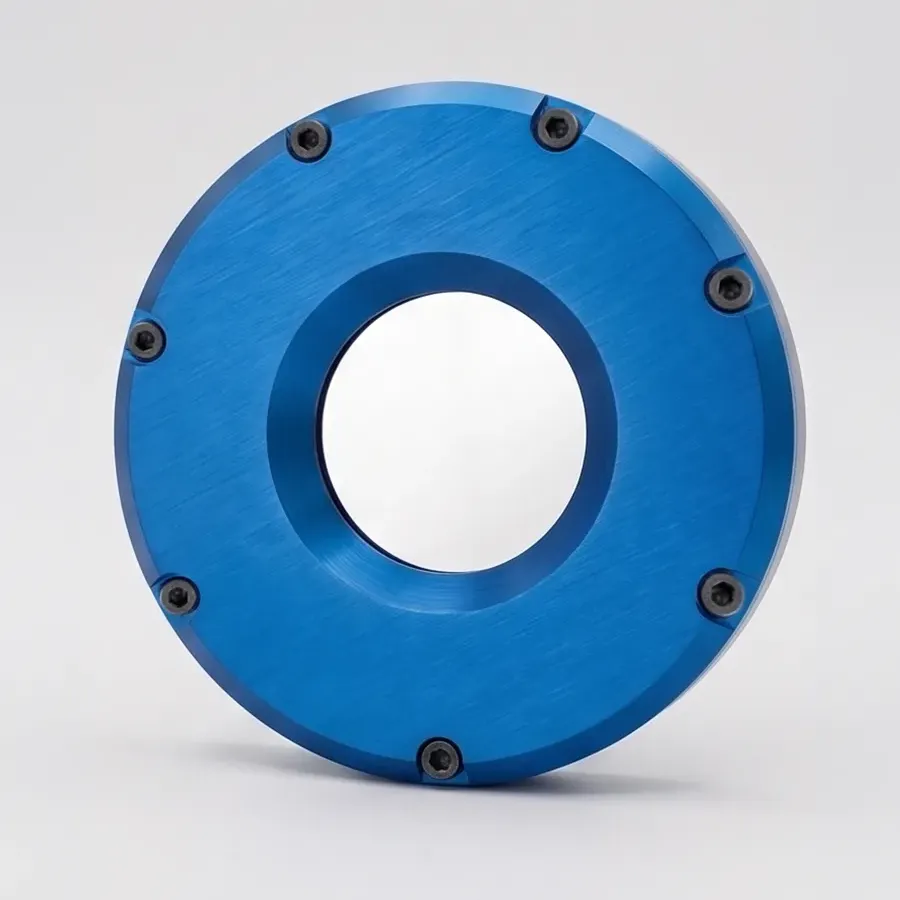

BIMORPH
The ideal solution for optical instruments and for high power lasers.
Dynamic Optics piezoelectric bimorph deformable mirrors
are the ideal components for the correction of optical aberrations for many applications: high power lasers, ophthalmic imaging, microscopy and optical communications.
Our deformable mirrors can use the same coating of your laser system either metallic or dielectric. We can support high reflectivity, high damage threshold, large bandwidth and low GDD. Our technology is the perfect trade off between cost and performances.
IDEAL FOR
- Fast correction of aberrations
- Correcting aberrations in full power mode
- Laser beam shaping
- Wavefront precompensation
- Telescopes
- Free space optical communication system
- High harmonic generation and particle acceleration
KEY SPECS
- Large size: up to 200mm
- Optical quality enabling Strehl Ratio > 0,9
- Close-loop control up to 1kHz
- Easy substrate replacement
- Any size, shape and angle of incidence
DESCRIPTION | DATA |
---|---|
Clear aperture size | 10mm to 200mm |
Coating | Metallic or dielectric |
Reflectivity options | Up to 99.99% Low GDD Large bandwidth Dual wavelength High damage threshold Any angle of incidence Low absorption |
Max average power | Up to 1kW without cooling |
Actuators | Up to 128 |
DM Size with embedded electronic | 92mm diameter (up to 50mm DM clear aperture) |
DM Size with external electronic | 75mm (compatible with 3” mirror mount) |
Communication | External electronic USB Embedded electronic Ethernet |
Integrated tip | Tilt stage |
Data sheets will be soon available.
In the meanwhile, please write us for further informations.
PSF Shaping Video
Deformable mirror with integrated fast tip/tilt stage
STACK
Wavefront control for kW class lasers
Dynamic Optics piezostack deformable mirrors
are the ideal component for aberration correction and beam shaping for high average power lasers. Our deformable mirrors exploit an athermal design to be able to work with extremely high average power without the use of active cooling.
IDEAL FOR
- High average power lasers (>1kW)
- Laser beam shaping
- Fast correction of aberrations
- Correcting aberrations in full power mode
- Wavefront precompensation
- Telescopes
- Free space optical communication system
- High harmonic generation and particle acceleration
KEY SPECS
- Optical quality enabling Strehl Ratio > 0,9
- Close-loop control up to 1kHz
- Any size, shape and angle of incidence
- High actuator density
DESCRIPTION | DATA |
---|---|
Clear aperture size | 25mm to 200mm |
Coating | Metallic or dielectric |
Reflectivity options |
Up to 99.99% Low GDD Large bandwidth Dual wavelength High damage threshold Any angle of incidence Low absorption |
Max average power | Up to 4kW without cooling |
Data sheets will be soon available.
In the meanwhile, please write us for further informations.
E-Drivers
Piezo Mini
multichannel piezoelectric driver
It is ideal for deformable mirrors and any type of piezo actuators.
Channels | 32 |
---|---|
Operating voltage | -125/+125V or 0-250V |
Communication | USB |
Max current | n.a. |
Size | 32mm x 79mm x 120mm |
Bandwidth | 5kHz |
Piezo Multi
Up to 128 actuators
Piezo Multi is a modular electronic solution for deformable mirror and piezoelectric actuators. It can be configured with USB or ethernet port with up to 128 actuators.
Channels | 32 or 64 or 96 or 128 |
---|---|
Operating voltage | -125/+125V or 0-250V |
Communication | USB |
Max current | n.a. |
Size | n.a. |
Bandwidth | n.a. |
Piezo Stack
High current piezoelectric driver
Piezo Stack Driver is a high current multi channel electronic driver designed for deformable mirrors and multy layer piezoelectric actuators. It communicates with plug and play USB port.
Channels | 10 to 40 channels |
---|---|
Operating voltage | 0V/+100V |
Communication | USB |
Max current | n.a. |
Size | n.a. |
Max load | n.a. |
Data sheets will be soon available.
In the meanwhile, please write us for further informations.
