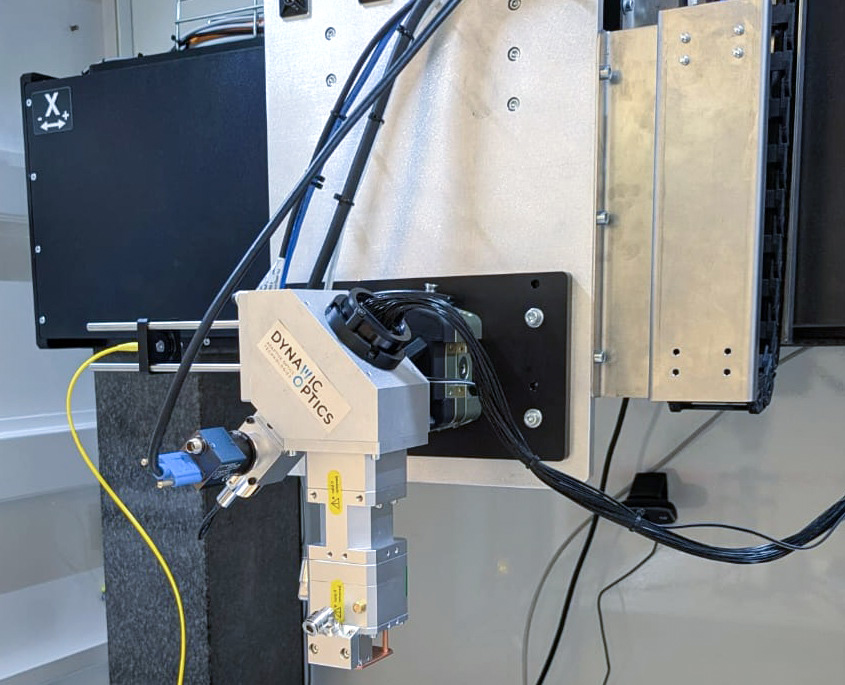

Beam Shaper
Dynamic beam shaping solution for industrial lasers
Advantages
Compatible with industrial mechanical and software laser standards.
High accuracy and stability.
Key Specs
| FEATURES | DESCRIPTION |
|---|---|
| Compatible Laser Types | Any type |
| Input Beam Requirements | gaussian, super-gaussian and flat-top collimated beams |
| Input/Output interface | 4 x M4 square flange with 64.5 mm distance |
| Software/Control Interface | Beam shaping via GUISDK under development |
Optical specifications
| PARAMETER | SPECIFICATION | NOTES |
|---|---|---|
| Compatible Laser Types | 1030-1070 nm | IBS dielectric coating, reflectance > 99.9% in the 1010 – 1130nm range.AOI = 45°Custom on request |
| Input Beam hard stop | 25 mm | A hard stop on the optical path is expected to clip beam to 25mm diameter |
| Beam shape on focal plane | Line, triangle, rhomboidal, ring | Beam shape can be obtained via AI software. |
| Deformable mirror | 32 actuators | 64 on demand |
| Stability | 15nm accuracy on deformable mirror shape | Achieved with an off-line optical feedback |
| Maximum laser power | 6kW | Tested up to 6kW in CW. Potentially could reach 10kW. |
