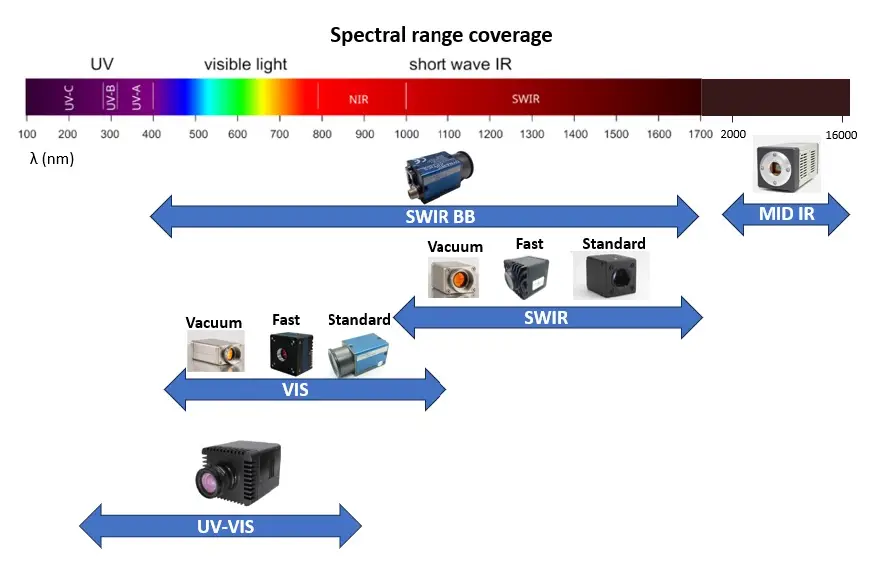

HIGH ACCURACY, HIGH SENSITIVITY, HIGH FRAME RATE AT ANY SPECTRAL RANGE
Suitable for VIS, NIR, SWIR. Ideal for wavefront measurement and closed loop adaptive optics control
Dynamic Optics Shack Hartmann wavefront sensor is easy to use
flexible and fast. It can measure wavefront distortions with high accuracy and precision. Photon Loop software can be interfaced with any type of camera and control any type of deformable mirror. Our wavefront sensor can measure in any spectral range with high resolution, accuracy and frame rate.
FAST CMOS
Plug and play solution
Plug and play solution with excellent sensitivity
frame rate and accuracy for VIS-NIR spectral range. It is ideal for metrology and deformable mirror control.
IDEAL FOR
- Accurate wavefront measurement
- Fast aberration acquisition
- Closed loop adaptive optics system
- Optical components quality inspection
KEY SPECS
- High accuracy (up to lambda/200)
- Fast acquisition (up to 1kHz)
- Affordable price
SPECS TABLE
DATA SHEETS
SPECS TABLE
DESCRIPTION | DATA |
---|---|
Lenslet array | 150um pitch, 5.2mm focal length (custom available) |
Frame rate | 500fps with 100 centroids (1kHz on request) |
Sensor size | 9mm x 7.13mm Aperture diameter: 9mm |
Trigger | External Trigger 5V |
Communication | USB 3.0 |
DEFORMABLE MIRROR CONTROL | |
Controller | Proportional-Integrative controller |
Calibration | Influence functions and Hadamard |
Control | Closed loop and Open loop |
Programming | Programmable via TCP-IP |
Compatibility with other deformable mirrors | Alpao, Adaptica, OKO, BMC, Thorlabs and Dynamic Optics |
DATA SHEETS
Data sheets will be soon available.
In the meanwhile, please write us for further informations.
SWIR
Fast, excellent sensitivity and low noise
The ideal solution for SWIR spectral range
with excellent sensitivity, frame rate and accuracy. It is ideal for metrology and deformable mirror control.
SPECS TABLE
DATA SHEETS
SPECS TABLE
DESCRIPTION | DATA |
---|---|
Lenslet array | 150um pitch, 5.2mm focal length (custom available) |
Frame rate | 600fps (full frame) |
Sensor size | 640 x 512 (15um) |
Communication | USB 3.0 or camera link |
DEFORMABLE MIRROR CONTROL | |
Controller | Proportional-Integrative controller |
Calibration | Influence functions and Hadamard |
Control | Closed loop and Open loop |
Programming | Programmable via TCP-IP |
Compatibility with other deformable mirrors | Alpao, Adaptica, OKO, BMC, Thorlabs and Dynamic Optics |
DATA SHEETS
Data sheets will be soon available.
In the meanwhile, please write us for further informations.
